For Sale New foils for Selden Furlex Type B Mk 2

[Mark Cooper]

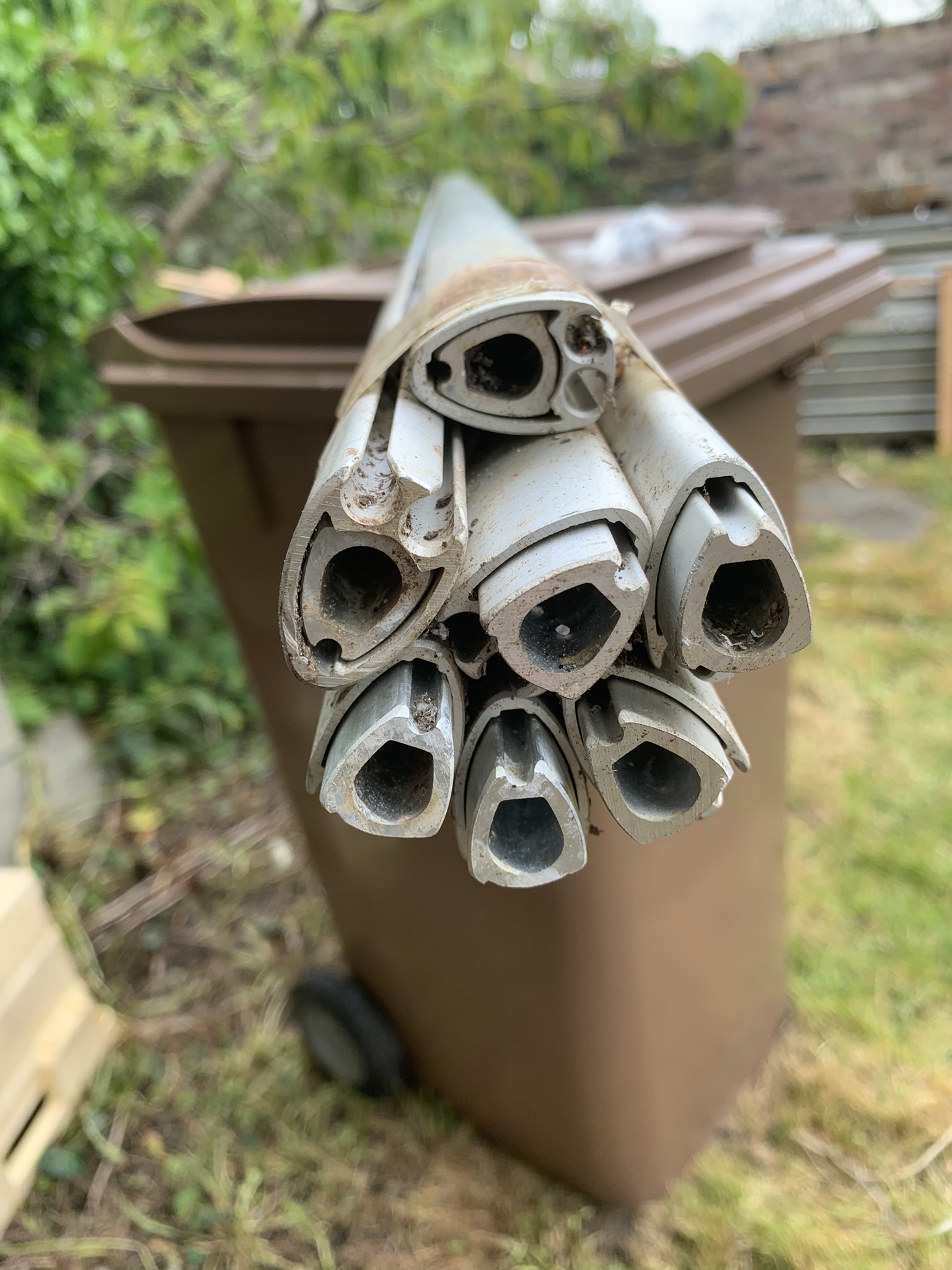

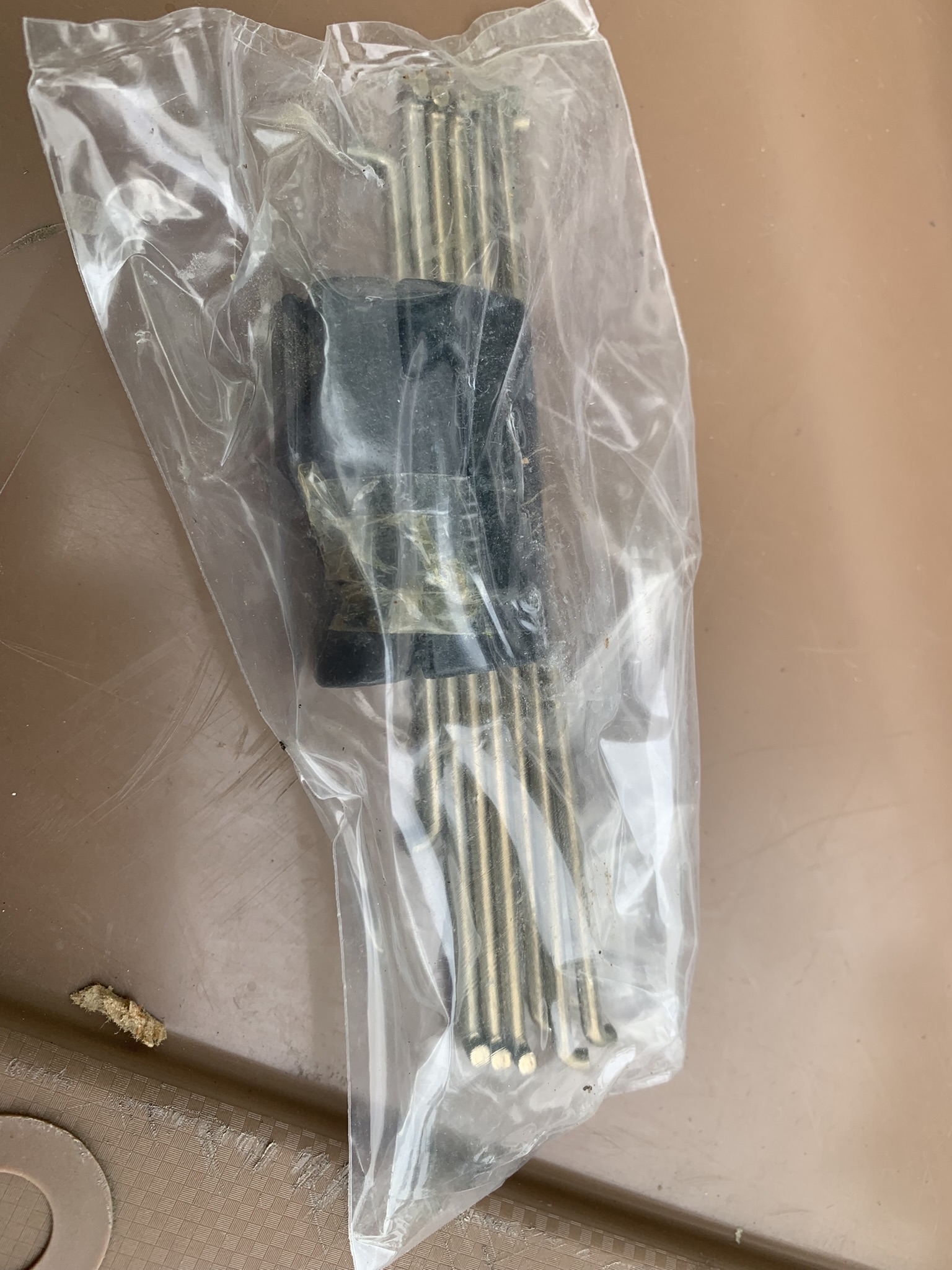

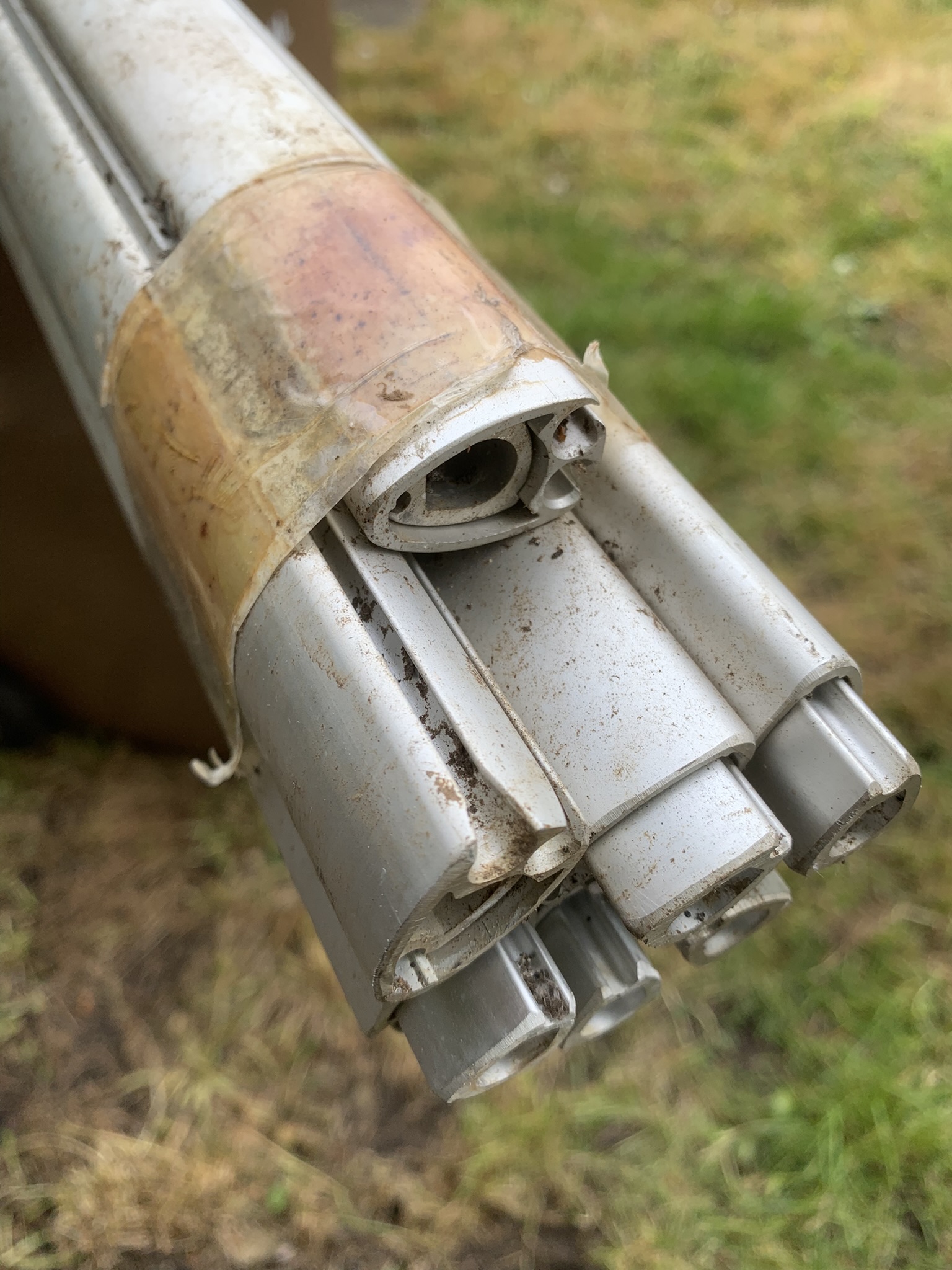

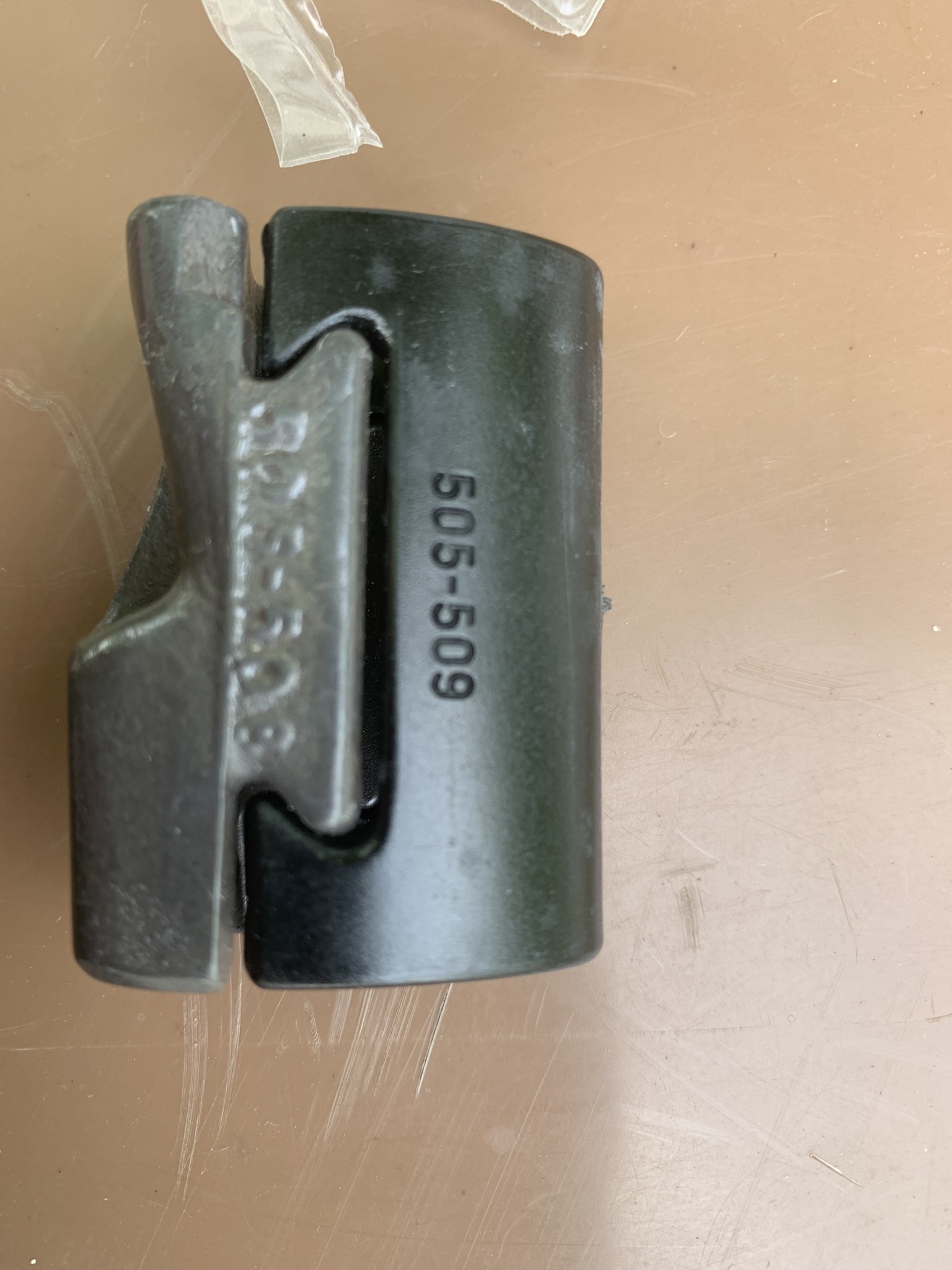

Set of Selden Furlex Type B Mk 2 foils; never used. Spec for a 336, so length should be 12.6m.

£250 or thereabouts ?

augustmood@icloud.com



[Toni Yazbeck]

Hey Mark,
Do you happen to have the pet numbers of those springs ? I’ve looking for them for a while to replace one of mine and unable to find them.

Thx



[Martin Johnson]

Type A and Type B spare parts list can be found at the link below (although the Selden website indicates they may be no longer available from Selden).

https://support.seldenmast.com/en/technical_info/sparepart_lists.html

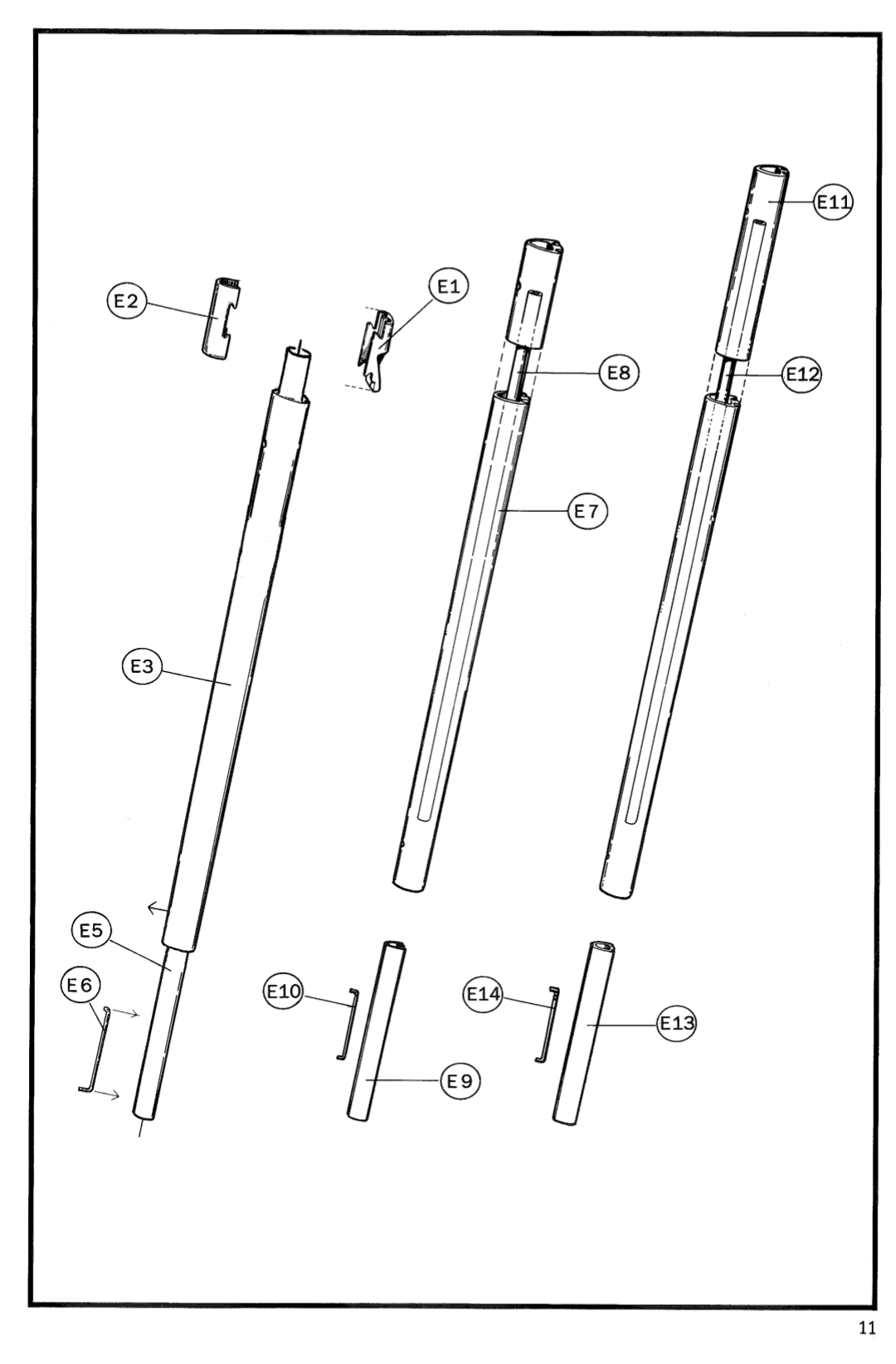

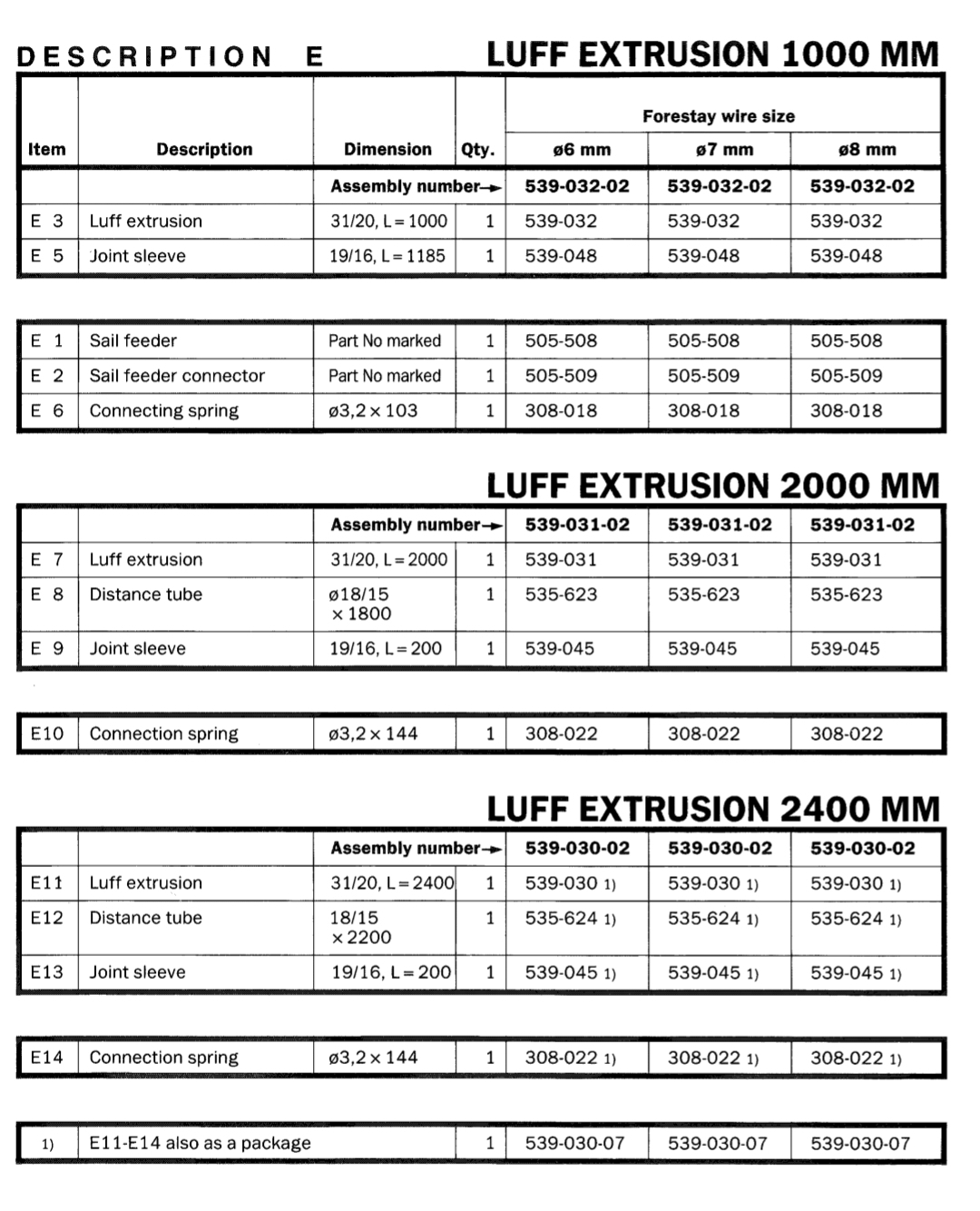

The Type B section for example shows the springs as...



[Martin Johnson]

And even better than parts lists..

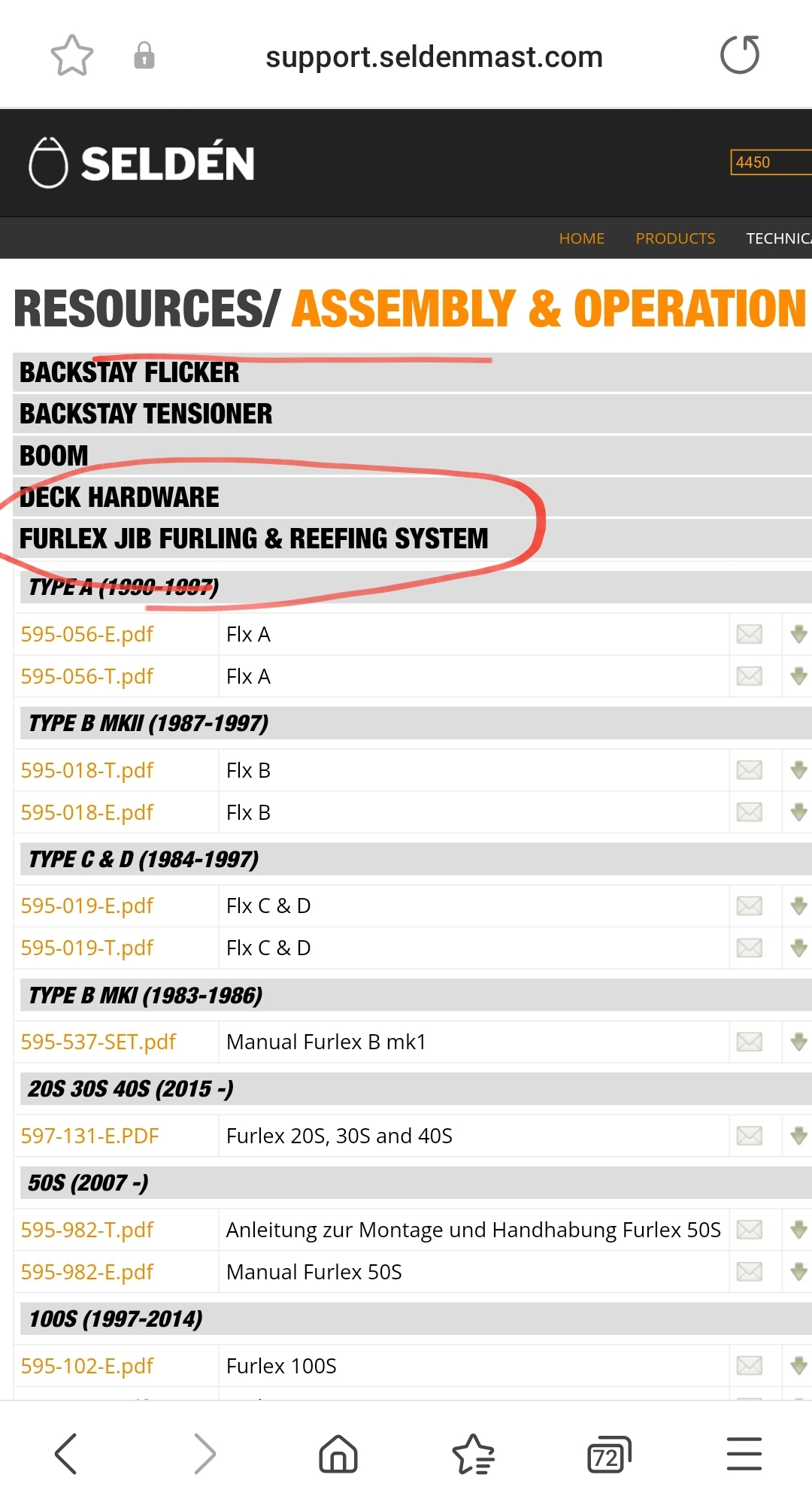

If you go to the Resources -> Assembly and Operation tab then scroll down to the Furlex Jib Furling and reefing system section, you will find the assembly manuals showing how they're all put together etc.

https://support.seldenmast.com/en/technical_info/manuals_for_assembly.html



[Toni Yazbeck]

And even better than parts lists..

If you go to the Resources -> Assembly and Operation tab then scroll down to the Furlex Jib Furling and reefing system section, you will find the assembly manuals showing how they're all put together etc.

https://support.seldenmast.com/en/technical_info/manuals_for_assembly.html


View attachment 31515

Thanks Martin
